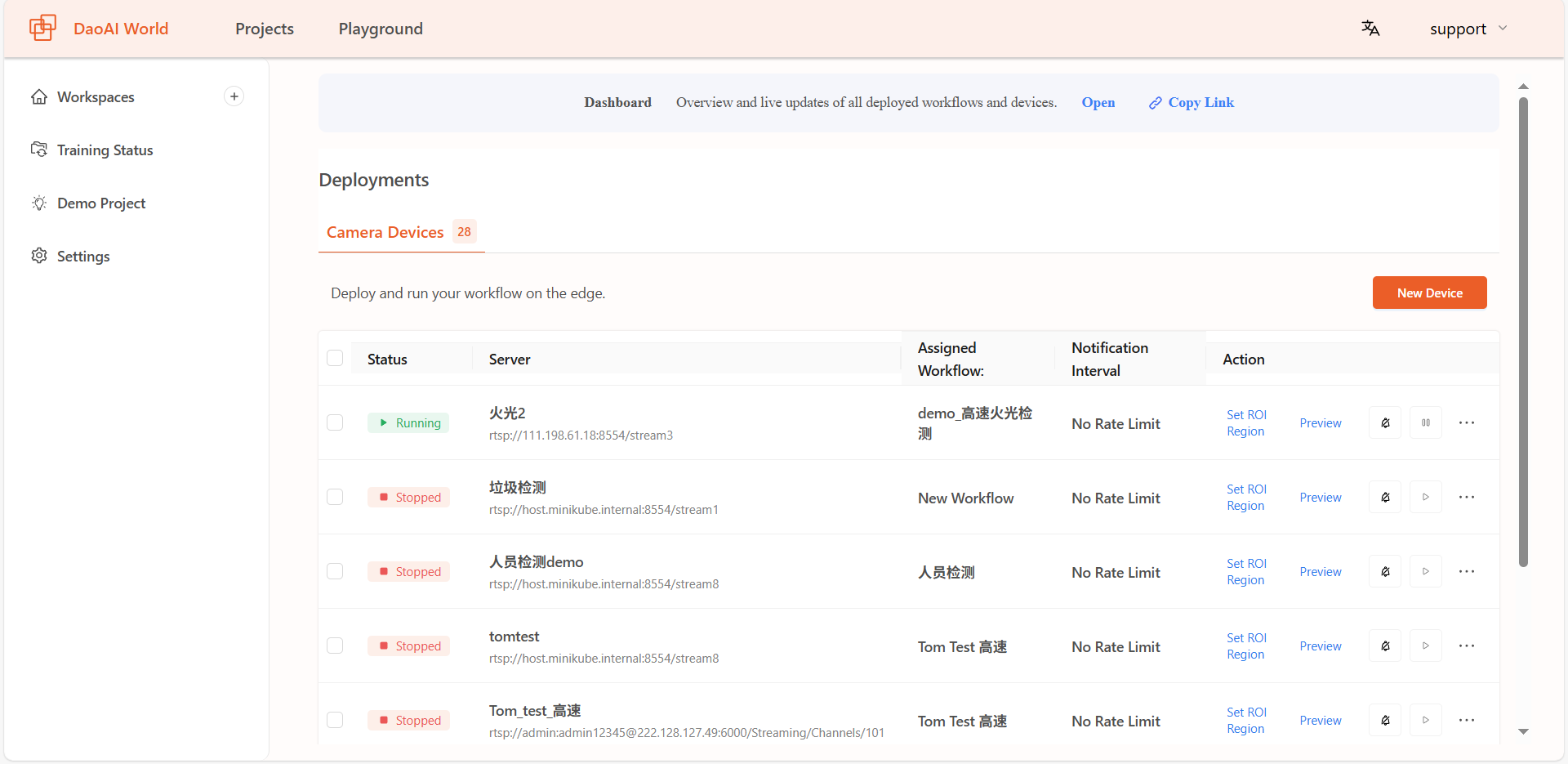

Deployment Interface

On the deployment interface, you can create, manage, and delete your surveillance cameras, and assign a detection workflow.

Create a New Device

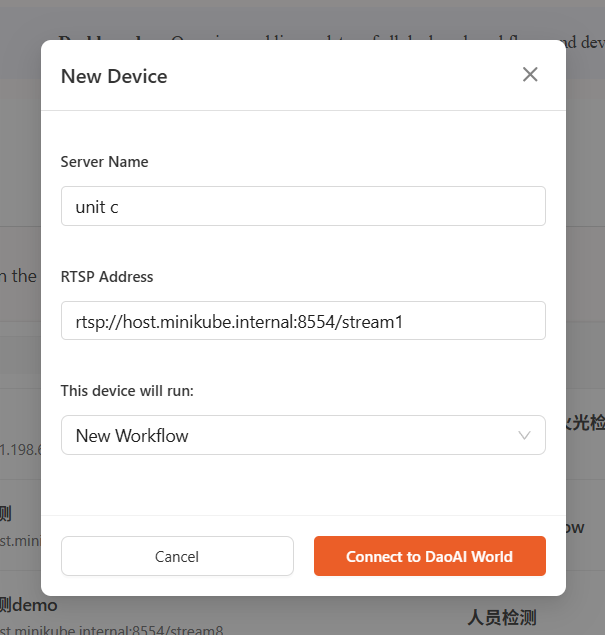

Click Create Device on the right-hand side.

Enter the device name, RTSP video stream address, and select a detection workflow. Then click Create to complete the setup.

Device Management

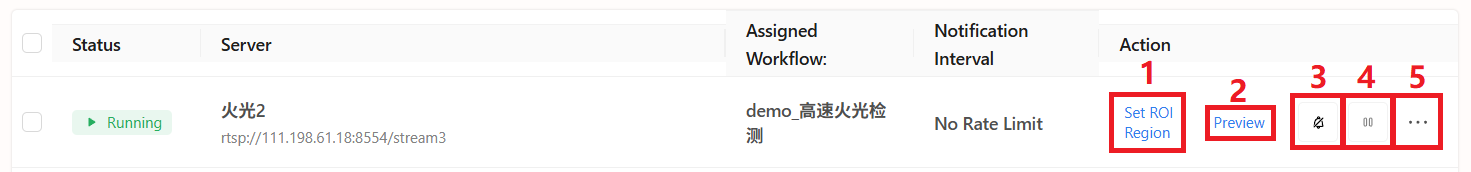

Once the device is created, it will appear in the list.

../_images/device.png
  1. Set Region of Interest (ROI):
    ../_images/roi.png

    Draw a region on the video feed and save it. Any detection results outside this region will be filtered out. Only results within the defined region will be retained.

    Note

    After defining the ROI, make sure the first module in the assigned workflow is the ROI module.

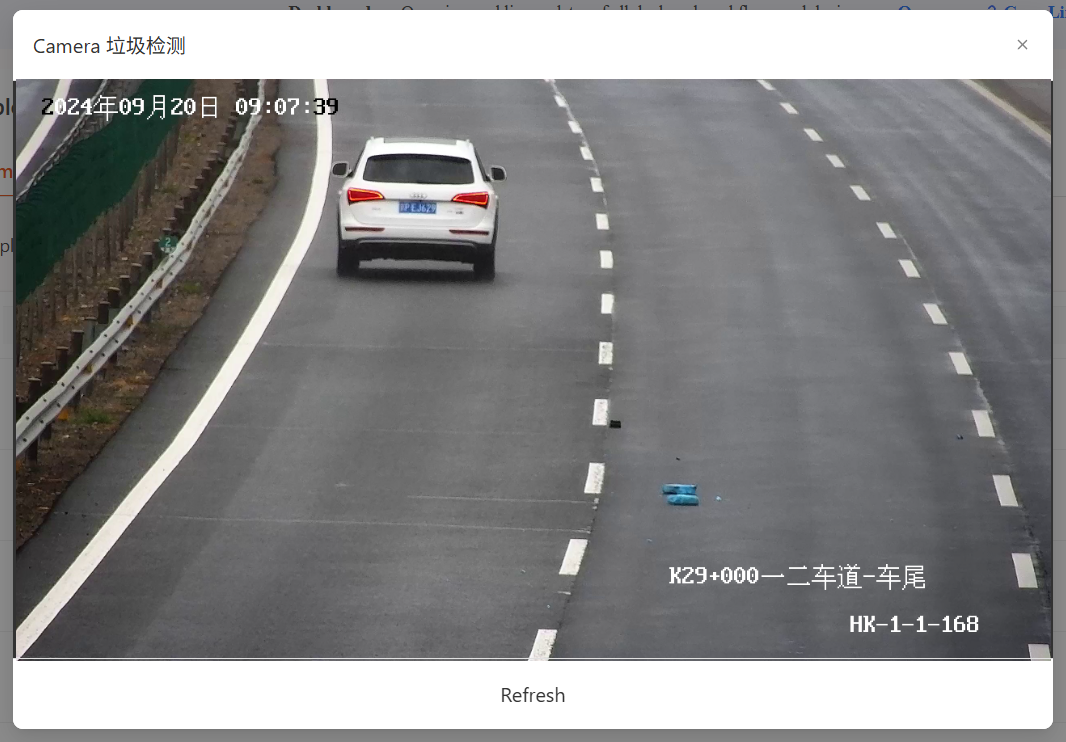

  2. Preview:

    Click to preview a single frame of the video stream to ensure the stream is connected.

    ../_images/preview.png
  3. Notifications:

    Toggle to enable or disable push notifications.

  4. Run:

    Click to Start/Stop running the device.

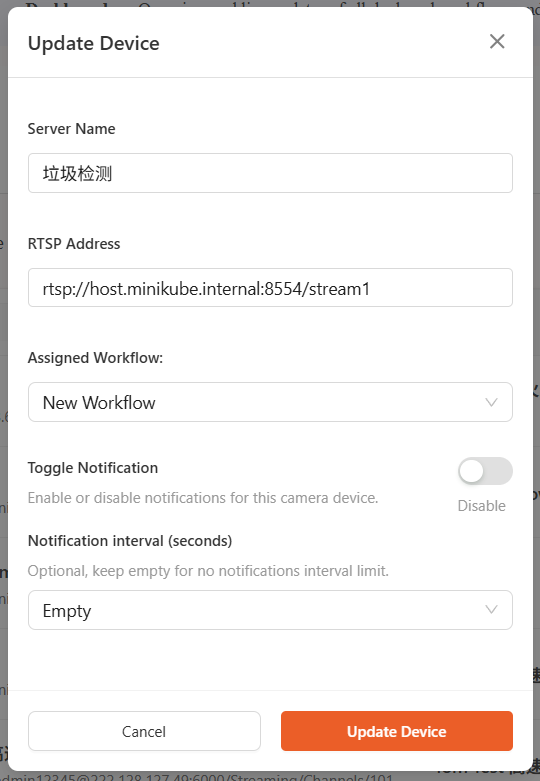

  5. Settings:

    Modify device configurations.

    ../_images/setting.png

    You can update the name, RTSP stream address, workflow, notification toggle, and notification interval.
